Plastic Crusher Manufacturer Multi-Functional Plastic Crusher Multiple Sizes and Specifications Available

video outgoing-inspection : Provided

Place of Origin : Henan, China

voltage : 380 V, 400 V, 415 V, 440 V

dimension(l*w*h) : 2000(L)X1600(W)X2250(H)

Cut type : cross cut

shaft design : Single

use : Waste Plastic Crusher

weight (t) : 1.5

Raw material : PP PE ABS PC PET

Advantage : High Efficiency Low Energy Consumption

Brand Name : CR

Used for : Waste Plastic Products Recycle

MOQ : 1

core components : Bearing, Motor, Gear, PLC, Gearbox, Pump, Pressure Vessel, Engine, Other

Crushing material : PVC PPR PP HDPE LDPE

key selling points : Multifunctional, Automatic, Competitive Price, High Productivity, High Safety Level

machinery test report : Provided

Usage : Waste Raw Material Shredding

warranty : 1 Year

Product name : Plastic Bottle Recycling Crusher Machine

Application : Recycle Waste Plastic

Keyword : Crusher Shredder

Function : Plastic Cutter Grinder Crusher Shredder Machine

Name : Waste Palstic Crushing

Price : $2,360-2,980

plastic type : PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS, Metal

power (kw) : 30

Contact Now

Plastic Crusher Manufacturer Multi-Functional Plastic Crusher Multiple Sizes and Specifications Available

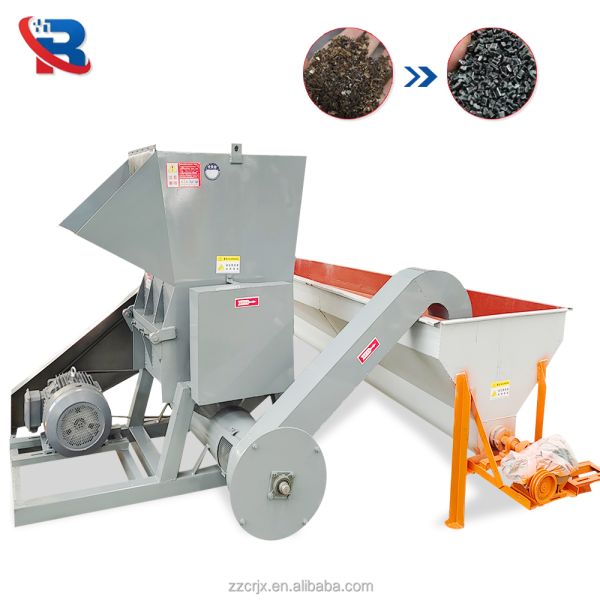

◊Plastic crusher machine

Plastic crushers are used to crush waste plastics and plastic scraps from factories. Plastic crushers are widely used in the regeneration of waste plastics and the recycling and reuse of factory scraps The plastic crusher is driven by an electric motor to rotate the moving knife disc at high speed. During the high-speed rotation of the moving knife, it forms a tendency of relative motion with the fixed knife. The gap formed between the moving knife and the fixed knife creates a cut for plastic crushing and shearing, thereby breaking down large pieces of plastic. The crushed plastic is filtered through a screen to determine the size of the plastic particles and then output.

◊Advantage

The crusher is easy to operate, and the knife change is simple and quick. The tool rest is optimized in design. The claw-shaped knife can disperse the force received, increasing the shearing force of each knife piece.

It is suitable for crushing thick materials, hard material blocks, material heads, etc., effectively enhancing the cutting force of the tool and reducing tool wear. It is equipped with an electric control safety design. The hopper adopts a double-layer structure and is filled with sound insulation materials inside, which makes the equipment have good safety and environmental protection, energy-saving and durable.

01 Motor

Pure copper motor, excellent electrical conductivity, good thermal conductivity, corrosiveness, suitable for a variety of working environments.

02 Sieve mesh

Screens of different specifications can be replaced according to different needs to achieve the required material size.

03 Rotor

The blades are made of alloy materials (such as 55SICR, SKD-11, D2 etc.), which have stronger wear resistance and a longer service life.

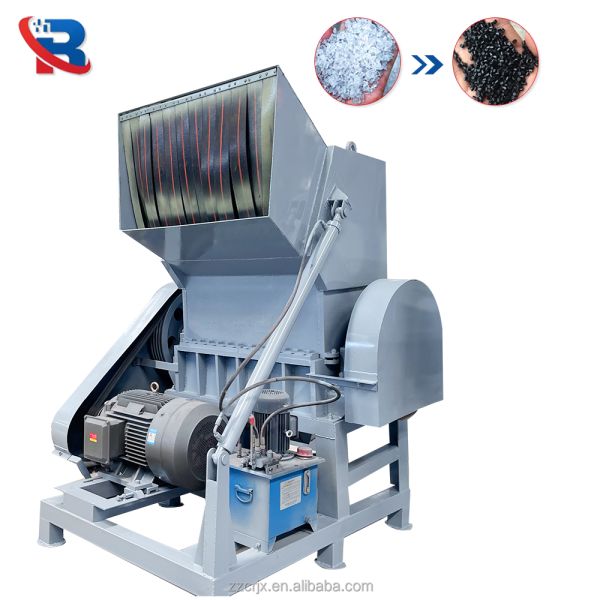

04 Hydraulic pump station

The hydraulic power can be quickly installed without the cumbersome disassembly process, which is convenient for maintenance, reduces manpower and downtime, and improves the operational efficiency of the equipment.

Model	Blade	Power (KW)	Screen aperture (Customizable)	Hourly output (KG)	L×W×H （MM)	Size of feed（MM)	Weight (KG)
400	4×6	7.5	10-30mm	300-500	11008501400	400*500	400
600	4×6	15	10-30mm	600-800	125011001850	720*620	600
800	4×6	30	10-30mm	900-1200	200016002250	1025*815	1300
1000	4×6	45	10-30mm	1000-1300	225018002300	1125*1020	1800
1200	4×6	55	10-30mm	1500-2000	235019502500	1200*1220	2300

About Us

Zhengzhou Chenrui Machinery Equipment Co., Ltd. Located in the High-End Equipment Manufacturing Park, Zhanjie Town, Gongyi City, Zhengzhou, Henan Province

As one of the manufacturers of waste and other solid waste metal recycling equipment with 21years of production experience, our factory can provide a complete set of solutions. All products are equipped with a perfect after-sales service system and hold CE certification. If assistance is needed, we can dispatch engineers overseas to provide equipment installation and operation training services.

Chenrui Machinery possesses a professional R&D team and a complete sales and service system. Currently, its advanced equipment has been exported to the United States, Mexico, Malaysia, South Korea, Japan, Spain, Turkey, Italy, Vietnam, South Africa, Australia, Singapore, India, the Philippines, Zambia, Thailand, Saudi Arabia, the United Arab Emirates and other countries and regions.

Hot Sale Product

FAQ

Q1: Are you a manufacturer?

A1:Yes, we are a manufacturer with rich experience.

Q2:What is the quality of your products? A2:Our machines are manufactured in strict accordance with national and international standards, and each machine is tested before leaving the factory.

Q3: Do you provide after-sales service? A3:Yes. Our machine warranty is one year, and we have a professional after-sales service team to solve your problems in time. Q4:Can you customize the machine for me? A4:We can customize it according to customer's requirement.

Q5:What is your shipping method? A5:Express, air freight, sea freight.

Q6:What is your production capacity per hour? A6:There are 2 tons/hour, 3 tons/hour, 5 tons/hour, 7 tons/hour, 10 tons/hour, 15 tons/hour and so on, which can be customized according to customers' requirements.

Q7:What are the payment terms? A7:30% down payment as deposit and 70% balance before shipment.
